LED Circuit Simulation:
Used to measure the value of the fundamental Planck Constant (h) of Quantum Mechanics


White light, as from a candle, a fire, or the sun, has been known for several centuries to be composed of many different colors.
This property can be examined by shining such light through a prism, which then splits the light into its component parts.
A rainbow of colors is created, and in fact, the sky rainbow itself is a natural phenomenon which produces this color splitting.
Each color takes a slightly different path through the prism, or a raindrop, based on its particular WaveLength.
Classical ElectroMagnetic theory & Special Relativity show that light has [ WaveLength*Frequency = λ*ν = (c) = Speed of Light in vacuum].
Red (scarlet) = Longer WaveLength = Smaller Frequency
Violet (purple) = Shorter WaveLength = Higher Frequency
with: WaveLength (λ) = distance between each crest of the wave; Frequency (ν) = how often a wave's crests pass a given point in space.
We see that the resulting light component's color depends on its particular WaveLength.

Prism

Later, scientists figured out how to make Light-Emitting Diodes, or LED's.  Each LED type emits light of a particular WaveLength.
The differences are due to the materials used to make a particular LED.  LED's demonstrate the inverse of the PhotoElectric effect.

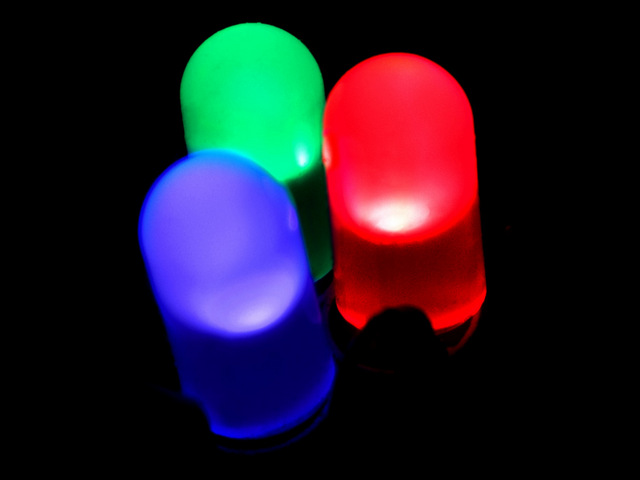

RGB LED's

PhotoElectric Effect: light is shone onto a material, and if its frequency is high enough, the electrons are given energy and a current will flow.
A "stopping" voltage (related to the work function of the material) has to be applied to applied to get the current down to zero while light is shining.
The kinetic energy of the emitted electrons increases with frequency, not brightness.
The electric current increases with brightness, not frequency.
Electrons are emitted only when the frequency of the light exceeds a certain threshold, regardless of how bright it is.

LED Effect: a voltage is placed across a material, and if it is high enough, current will flow and light of a particular frequency will be emitted by the diode.
A "work function voltage" gives more energy to the photons than just the applied activation voltage across the diode.

In both cases, current or number of electrons, is directly related to the intensity of the light, not to the frequency of the light.
In both cases, voltage or the potential energy of the electrons, is related to the frequency of the light, not to the intensity of the light.
One concludes that individual electrons emit individual photons of light, with an energy related to the frequency of the photon.
By graphing the curves of activation voltage vs. inverse WaveLength, one can find a fundamental constant of nature, Planck's Constant (h).


In the experiment simulated below, Voltage is sent through a circuit, causing each type of LED to emit its own characteristic WaveLength.
Slowly increase the LED voltage with the slider bar to scan for the Activation Voltage for each type of LED...
When you see the scatter plot of Activation Voltage (AV) vs. Inverse WaveLength (WL), use the [ Calculate Slope ] button.
In the simulation, the InfraRed (IR) and UltraViolet (UV) would actually appear black to a human, but I give the outline of color to let you know when each one activates.
Also, the LED intensity of the visible colors increases with increases voltage and current flow.
You can see this effect by pushing the [ ClearCanvas (black) ] button, which simulates a dark room, which is how the experiment is actually performed.


xxxx




coords




Light Emitting Diode Colours

Typical LED Characteristics
Semiconductor
Material		 Wavelength Colour VF @ 20mA
GaAs 850-940nm Infra-Red 1.2v
GaAsP 630-660nm Red 1.8v
GaAsP 605-620nm Amber 2.0v
GaAsP:N 585-595nm Yellow 2.2v
AlGaP 550-570nm Green 3.5v
SiC 430-505nm Blue 3.6v
GaInN 450nm White 4.0v

Silicon Carbide (SiC) is a naturally-occuring LED substance
Moissanite is naturally-occuring Silicon Carbide
This proves that one doesn't "need" a QM equation to get an LED.
